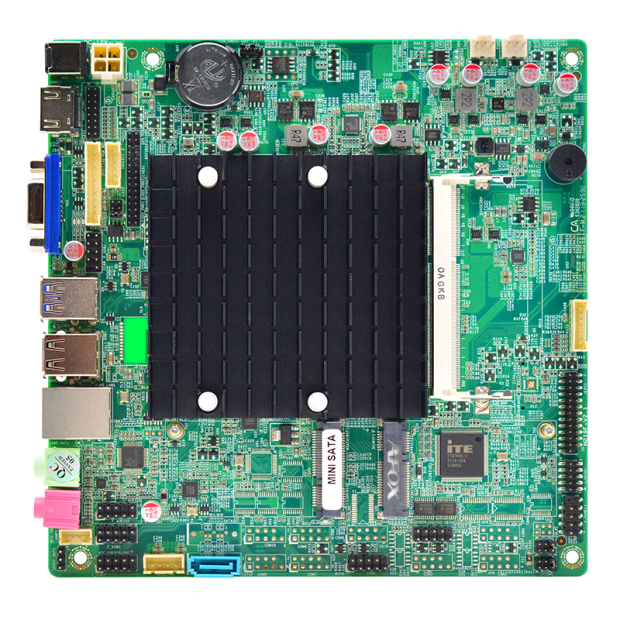

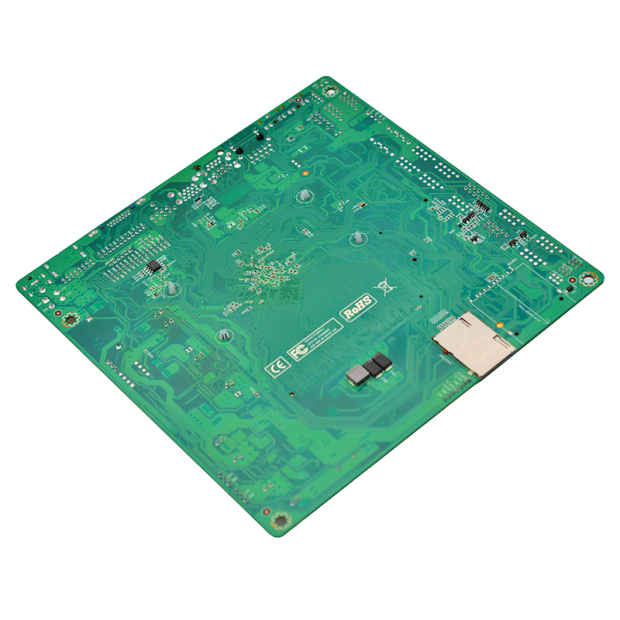

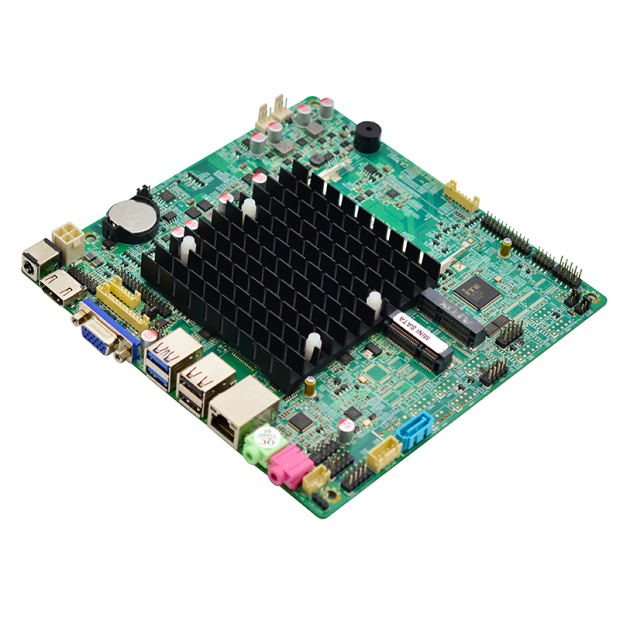

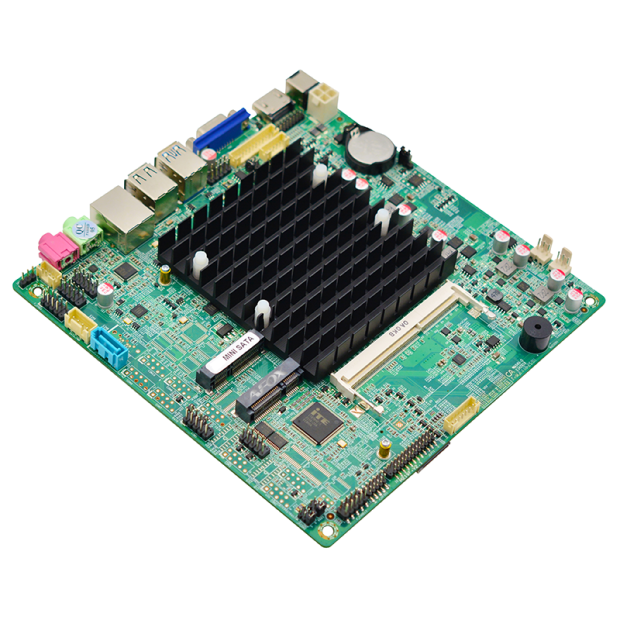

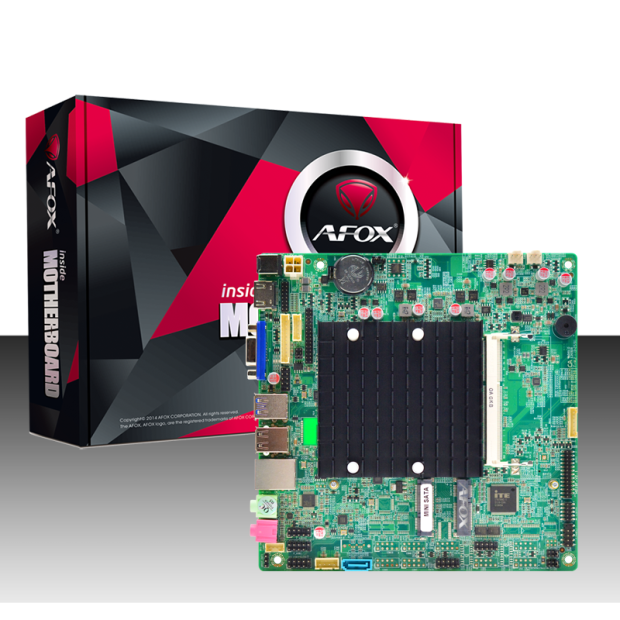

AFOX AFMIJ2900-1L
Model Name: AFMIJ2900-1L
Chipset: N/A
Socket: INTEL® Socket 1170
Supports Intel® Celeron® J2900 Processor Embedded
So-Dimm DDR3L 1333/1600MHz 1.35V
1 x Memory Slot (Max. up to 8GB)
Electromagnetic interference resistance
Strong environmental adaptability
High stability, dustproof and seismic resistance
HD Gallery
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►So-Dimm DDR3L 1333/1600MHz support
►SATA 3Gb/s
►Gigabit LAN
►USB 3.0
►Microsoft Windows 10/11 compatible
|
Platform |
INTEL® Socket 1170 |
|
Model Name |
AFMIJ2900-1L |
|
Chipset |
N/A |
|
CPU Supports |
Intel® Celeron® J2900 Processor Embedded |
|
FSB |
1333/1600MHz |
|
Memory |
So-Dimm DDR3L 1333/1600MHz 1.35V (Memory up to 8GB) |
|
Dimm |
1 x Memory Slot (Max. up to 8GB) |
|
Onboard Graphics |
Integrated Graphics Processor |
|
PCI/PCI-E Slots |
N/A |
|
SATA |
1 x SATA2, 1 × MSATA |
|
IDE |
N/A |
|
Audio |
Cmedia HS-100B USB & Realtek 662 /892 on board Supports 6-channel audio-out |
|
LAN |
Realtek RTL8111 1000M lan onboard |
|
Back Panel I/Os |
1 x HDMI 1 x D-Sub (VGA) Port 2 x USB2.0, 2 x USB 3.0 1 x LAN 2 x Audio |
|
ON-Board Pinheaders/Connectors |
2 x USB 2.0 pinheader (support additional 4 USB 2.0s) 2 x Front Pane 2 x COM pinheader 1 x Front Panel Audio pinheader 1 x VGA connector 1 x HDMI connector 1 x LVDS 1 x PWR DC 1 x ATX12V, 4P 1 x SIM_CARD 1 x 4G/WIFI |
|
BIOS |
UEFI BIOS |
|
Mounting |
4 mounting holes |
| Form Factor | Mini-ITX (17 x17cm) |
