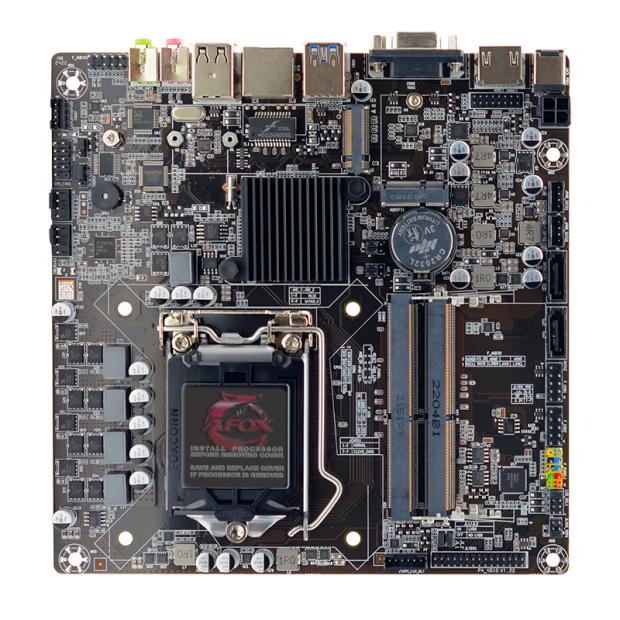

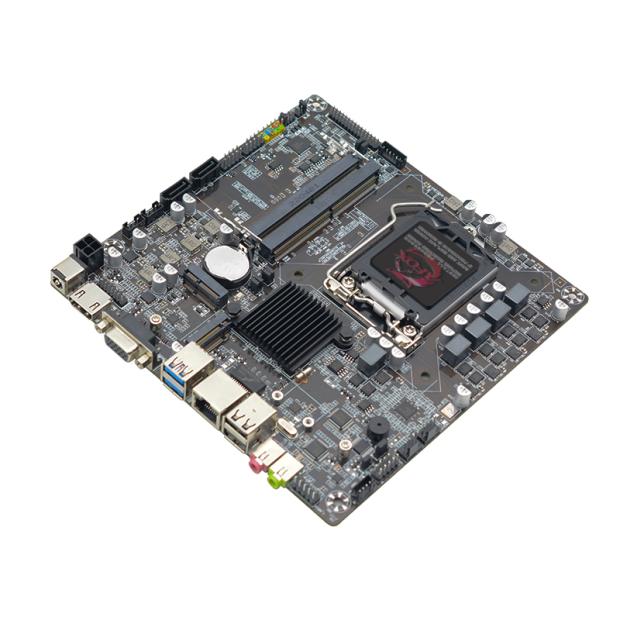

AFOX AFH510-MI

Model Name: AFH510-MI
Chipset: Intel® H510
Socket: INTEL® Socket 1200
Supports Intel® Socket 1200 for Core i7/Core i5/Core i3 Pentium/Celeron Processors
Supports Intel 10th/11th
Dual Channel So-Dimm DDR4L 1.2V
2 x Memory Slot (Max. up to 32GB)
Electromagnetic interference resistance
Strong environmental adaptability
High stability, dustproof and seismic resistance

HD Gallery

DESCRIPTION
SPECIFICATION
BIOS / DRIVERS UPDATE
REQUIREMENT

►So-Dimm DDR4L 2133 / 2400(O.C.) / 2800(O.C.) / 3200(O.C.) MHz support

►SATA 6Gb/s

►Gigabit LAN

►USB 3.0

►Microsoft Windows 10/11 compatible

Platform	INTEL® Socket 1200
Model Name	AFH510-MI
Chipset	Intel® H510
CPU Supports	Intel® Socket 1200 for Core i7/Core i5/Core i3 Pentium/Celeron Processors Supports Intel 10th/11th
FSB	2133 / 2400(O.C.) / 2800(O.C.) / 3200(O.C.) MHz
Memory	So-Dimm DDR4L 2133 / 2400(O.C.) / 2800(O.C.) / 3200(O.C.) MHz 1.2V (Memory up to 32GB)
Dimm	2 x Memory Slot (Max. up to 32GB)
Onboard Graphics	Integrated Graphics Processor
PCI/PCI-E Slots	N/A
SATA	2 x SATA2 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)
IDE	N/A
Audio	Realtek 662 on board, supports 6-channel audio-out
LAN	Realtek RTL8111 1000M lan onboard

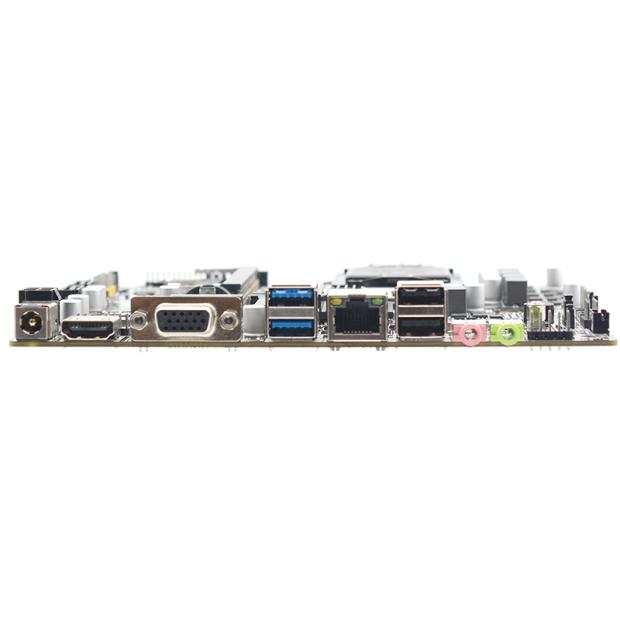

Back Panel I/Os	1 x HDMI 1 x VGA 2 x USB 2.0 2 x USB 3.0 1 x LAN 2 x Audio
ON-Board Pinheaders/Connectors	2 x USB 2.0 pinheader (support additional 2 USB 2.0s) 2 x Front Panel 1 x COM pinheader 1 x HDMI connector 1 x LVDS 1 x PWR DC 1 x ATX12V, 4P 1 x SPEAKER 1 x AUDIO 1 x MINI PCIE(4G WIFI)
BIOS	UEFI BIOS
Mounting	4 mounting holes
Form Factor	Mini-ITX (17 x17cm)
