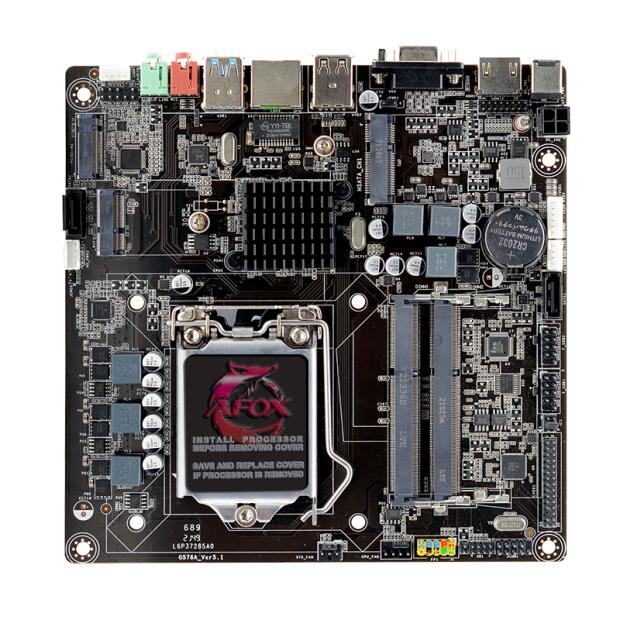

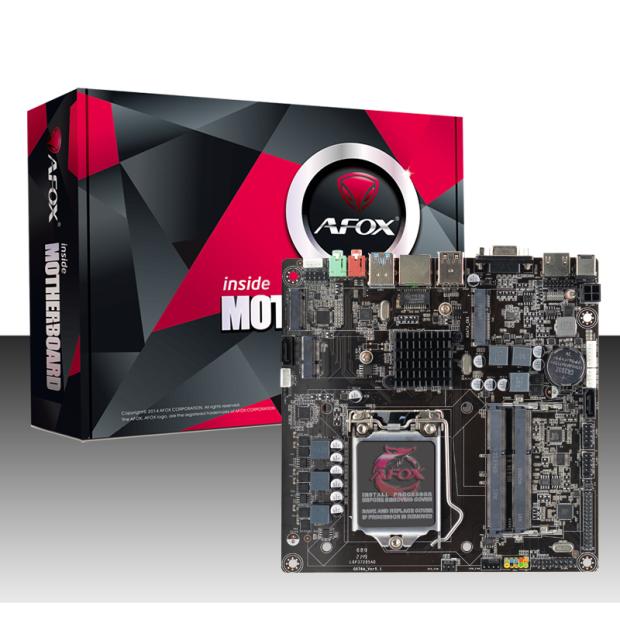

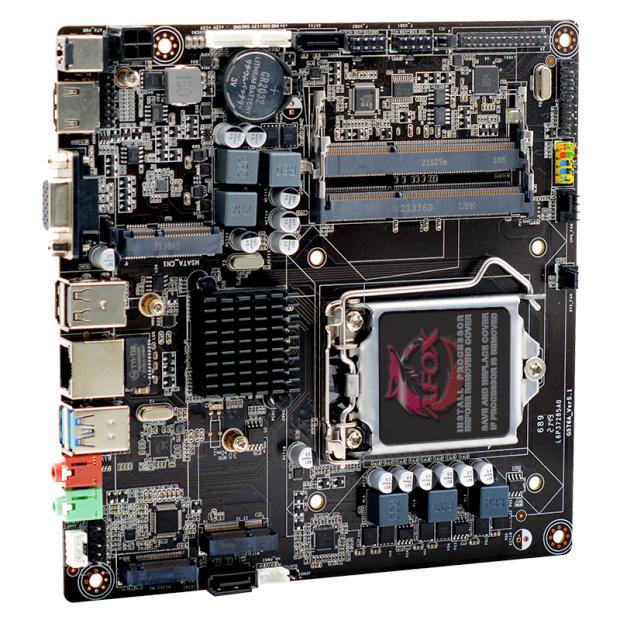

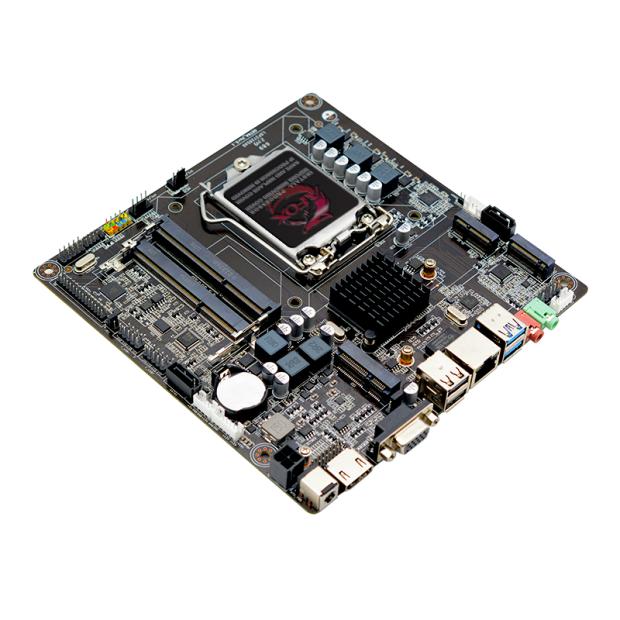

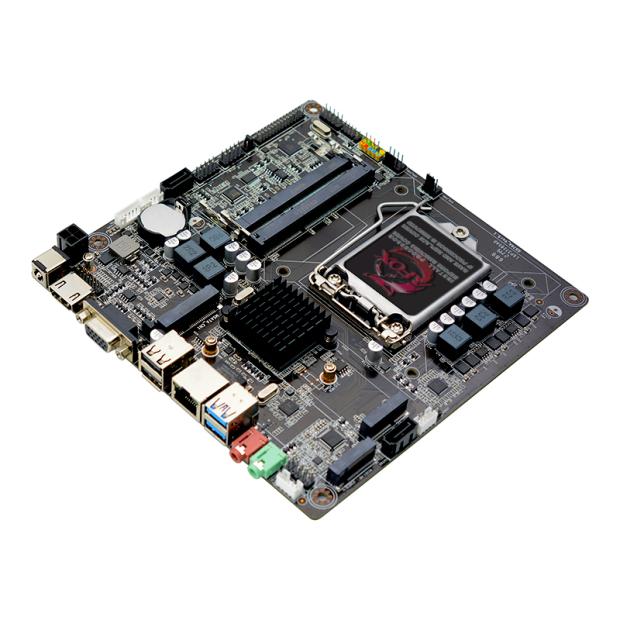

AFOX AFH81-MI2

Model Name: AFH81-MI2
Chipset: Intel® H81
Socket: INTEL® Socket 1150
Supports INTEL® Socket 1150 for Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® / Xeon® Processors (CPU up to 95 watts)
Supports Intel 4th Generation
Dual Channel So-Dimm DDR3L 1.35V
2 x Memory Slot (Max. up to 16GB)
Electromagnetic interference resistance
Strong environmental adaptability
High stability, dustproof and seismic resistance

HD Gallery

DESCRIPTION
SPECIFICATION
BIOS / DRIVERS UPDATE
REQUIREMENT

►So-Dimm DDR3L 1333 / 1600MHz support

►SATA 3Gb/s

►Gigabit LAN

►USB 3.0

►Microsoft Windows 10/11 compatible

Platform	INTEL® Socket 1150
Model Name	AFH81-MI2
Chipset	Intel® H81
CPU Supports	Supports INTEL® Socket 1150 for Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® / Xeon® Processors (CPU up to 95 watts) Supports Intel 4th Generation
FSB	1333 / 1600MHz
Memory	So-Dimm DDR3L 1333 / 1600MHz MHz 1.35V (Memory up to 16GB)
Dimm	2 x Memory Slot (Max. up to 16GB)
Onboard Graphics	Integrated Graphics Processor
PCI/PCI-E Slots	N/A
SATA	2 × SATA2 1 × MSATA 1 × M.2 SATA
IDE	N/A
Audio	Realtek 662 on board, supports 6-channel audio-out
LAN	Realtek RTL8111 1000M lan onboard

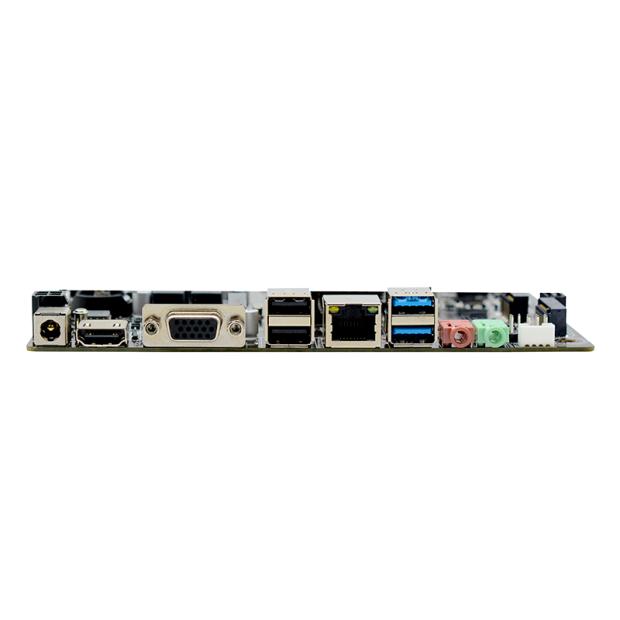

Back Panel I/Os	1 x HDMI 1 x VGA 2 x USB2.0 2 x USB 3.0 1 x LAN 2 x Audio
ON-Board Pinheaders/Connectors	2 x USB 2.0 pinheader (support additional 2 USB 2.0s) 1 x Front Panel 2 x COM pinheader 1 x HDMI connector 1 x LVDS 1 x PWR DC 1 x ATX12V, 4P 1 x SPEAKER 1 x AUDIO 1 x MINI PCIE(4G WIFI)
BIOS	UEFI BIOS
Mounting	4 mounting holes
Form Factor	Mini-ITX (17 x17cm)
