AFMIA300-1L-V2 /V4
Model Name: AFMIA300-1L-V2 /V4
Chipset: AMD® A300
Socket: AMD® Socket AM4
Supports AMD® Socket AM4 Processorsm including Ryzen Series / Ryzen 4000 G Series / Ryzen 3000 Series processors (up to 65W)
Dual Channel So-Dimm DDR4L 1.2V
2 x Memory Slot (Max. up to 32GB)
Electromagnetic interference resistance
Strong environmental adaptability
High stability, dustproof and seismic resistance
HD Gallery
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►So-Dimm DDR4L 2133 / 2400 MHz support
►SATA 6Gb/s
►Gigabit LAN
►USB 3.0
►Microsoft Windows 10/11 compatible
|
Platform |
AMD® Socket AM4 |
|
Model Name |
AFMIA300-1L-V2/ AFMIA300-1L-V4 |
|
Chipset |
AMD® A300 |
|
CPU Supports |
Supports AMD® Socket AM4 Processorsm including Ryzen Series / Ryzen 4000 G Series / Ryzen 3000 Series processors (up to 65W) |
|
FSB |
2133/ 2400MHz |
|
Memory |
So-Dimm Dual Channel DDR4L 2133/ 2400MHz 1.2V (Memory up to 32GB) |
|
Dimm |
2 x Memory Slot (Max. up to 32GB) |
|
Onboard Graphics |
By CPU |
|
PCI/PCI-E Slots |
1 x M.2 WIFI/ BT (Supports 4G/ WIFI Module) |
|
SATA |
1 x SATA3.0, 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3) |
|
IDE |
N/A |
|
Audio |
Realtek 662 on board, supports 6-channel audio-out |
|
LAN |
Realtek RTL8111 Gigabit lan onboard |
|

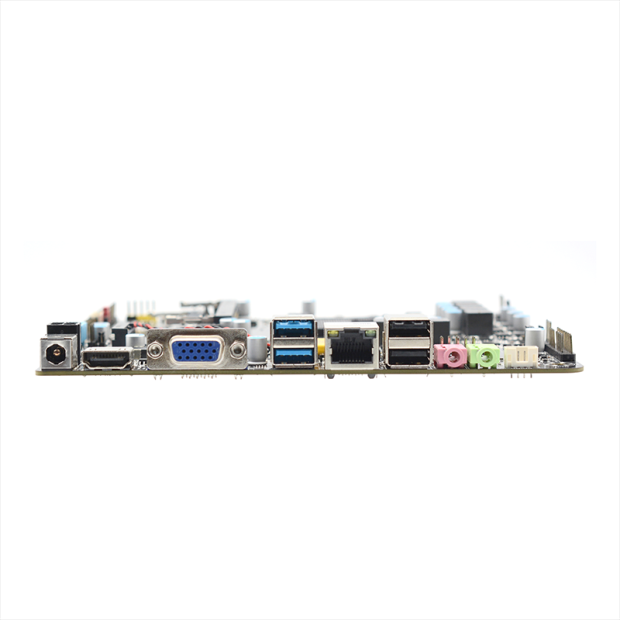

Back Panel I/Os |
1 x HDMI 1 x D-Sub (VGA) Port (Only for AFMIA300-1L-V4) 2 x USB2.0 2 x USB 3.0 1 x LAN 2 x Audio |
|
ON-Board Pinheaders/Connectors |
2 x USB 2.0 pinheader (support additional 2 USB 2.0s) |
|
BIOS |
UEFI BIOS |
|
Mounting |
4 mounting holes |
| Form Factor | Mini-ITX (17 x17cm) |
