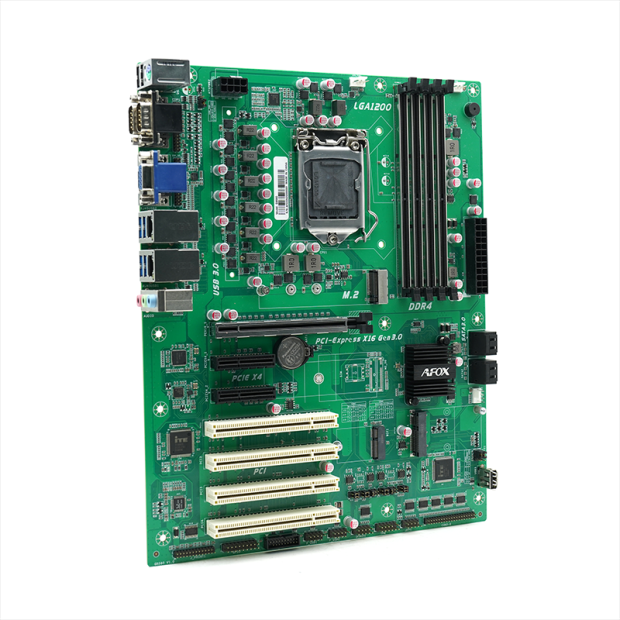

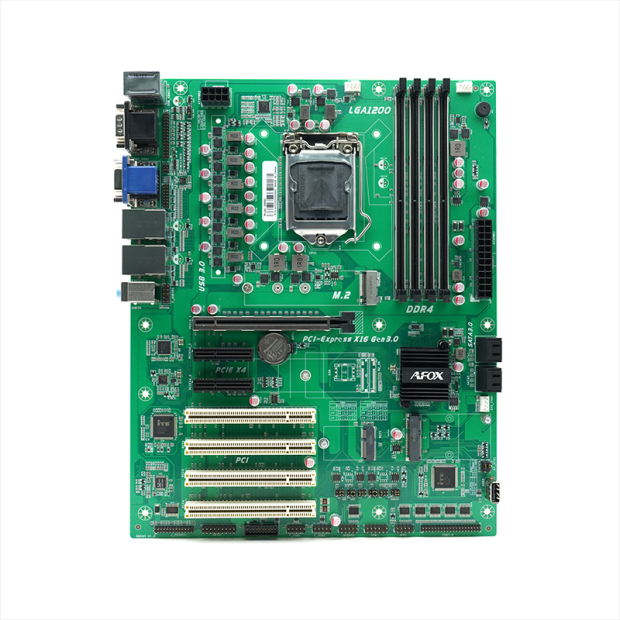

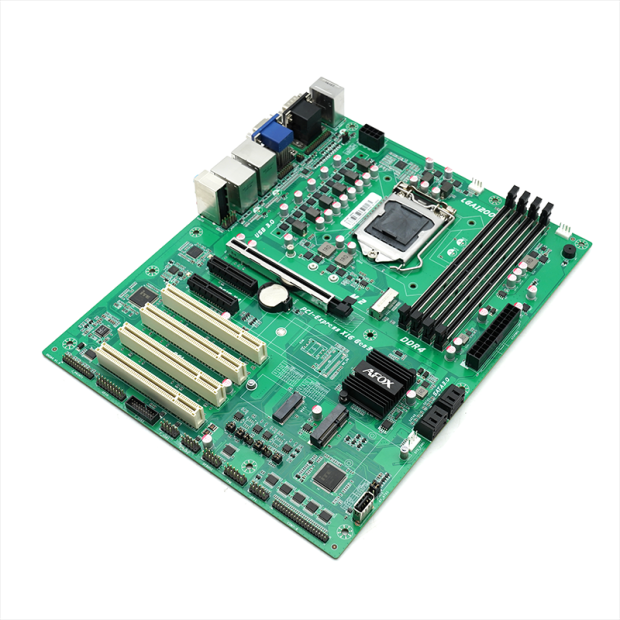

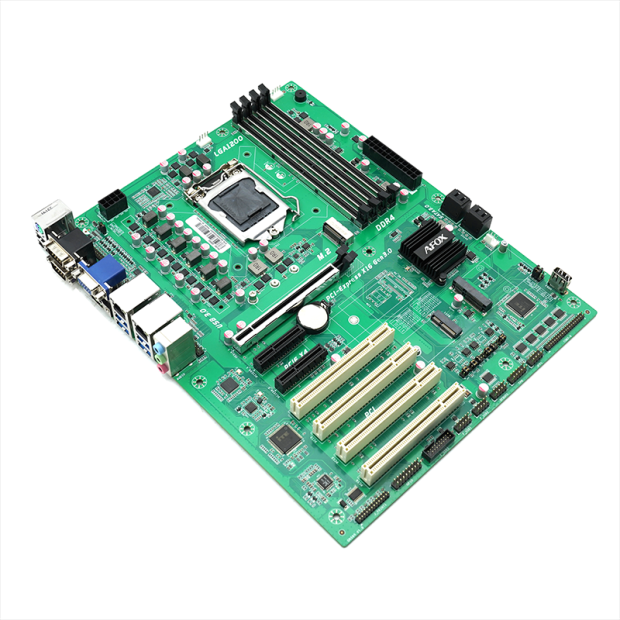

AFB560D4-AX5-2L

Model Name: AFB560D4-AX5-2L
Chipset: Intel® B560
Socket: INTEL® Socket 1200
Supports Intel® Socket 1200 for Core i7/ Core i5/ Core i3 Pentium/ Celeron Processors
Supports Intel 10/ 11th Generation
4 x Memory Slots (Max. up to 128GB) 2133/ 2400(O.C.)/ 2666(O.C.)/ 2800(O.C.)/ 3000(O.C.)/ 3200(O.C.) MHz 1.2V
Electromagnetic interference resistance
Strong environmental adaptability
High stability, dustproof and seismic resistance

HD Gallery

DESCRIPTION
SPECIFICATION
BIOS / DRIVERS UPDATE
REQUIREMENT

►DDR4 2133/ 2400(O.C.)/ 2666(O.C.)/ 2800(O.C.)/ 3000(O.C.)/ 3200(O.C.) MHz

►SATA 6Gb/s

►Gigabit LAN

►USB 3.0

►Microsoft Windows 10/11 compatible

Platform	INTEL® Socket 1200
Model Name	AFB560D4-AX5-2L
Chipset	Intel® B560
CPU Supports	Socket 1200 for Core i7/Core i5/Core i3 Pentium/Celeron Processors Supports Intel 10th/11th Generation
FSB	2133 / 2400(O.C.) / 2666(O.C.)/ 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz
Memory	DDR4 2133 / 2400(O.C.) / 2666(O.C.)/ 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz 1.2V (Memory up to 128GB)
Dimm	4 x Memory Slots (Max. up to 128GB)
Onboard Graphics	Integrated Graphics Processor
PCI/PCI-E Slots	4x PCI 1 x PCI Express x16 3.0 slot 2 x PCI Express x1 slot 1 x Mini PCI-E Slot (Supports 4G/WIFI Module)
SATA	4 x SATA3.0, 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)
IDE	N/A
Audio	Realtek 662/879 on board, Supports 6-channel audio-out
LAN	Intel i219 1000Mbits Intel i225 2.5G bits
Back Panel I/Os	1 x HDMI Port 1 x D-Sub (VGA) Port 2 x COM Port 1 x PS/2 Mouse Port 4 x USB 3.0 Ports 2 x USB 2.0 Ports 2 x RJ-45 LAN Port (Intel i219 i225) 3 x HD Audio Jack (Line in / Front Speaker / Microphone)
ON-Board Pinheaders/Connectors	2 x USB 2.0 pinheader (supports additional 4 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 3 x Front Panel 4 x COM pinheader 1 x HDMI connector 1 x GPIO 1 x EDP 1 x ATX12V, 4P 1 x ATX 12V 24P 1 x SPEAKER 1 x AUDIO 1 x AT/ATX MODE(ATX Defauit)
Form Factor	ATX (24.4*30.5CM)
