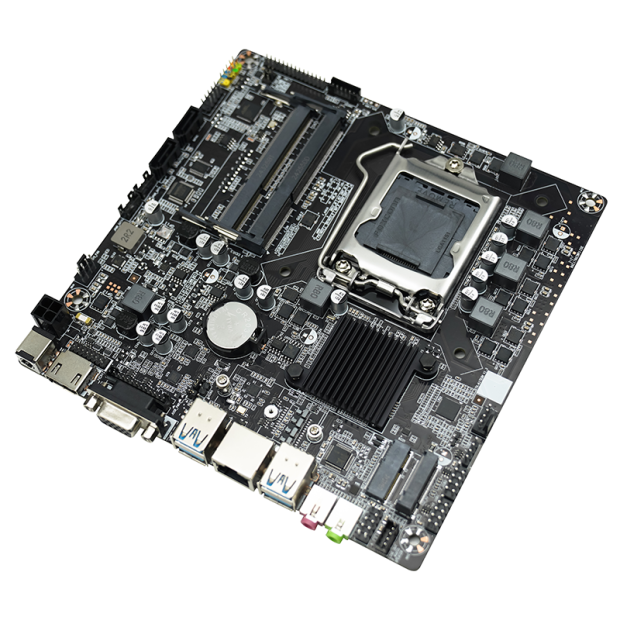

AFOX AFMIH110D3-1L-V2
Model Name: AFMIH110D3-1L-V2
Chipset: Intel® H110/ B150/ B250
Socket: INTEL® Socket 1151
Supports Intel® Socket 1151 for Core i7/ Core i5/ Core i3 Pentium/ Celeron Processors
Supports Intel 8th/ 9th Generation
2 x Memory Slots (Max. up to 32GB)
Electromagnetic interference resistance
Strong environmental adaptability
High stability, dustproof and seismic resistance
HD Gallery
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►Dual Channel So-Dimm DDR3L 1333/1600MHz 1.35V Memory up to 16GB
►SATA 3Gb/s
►Gigabit LAN
►USB 3.0
►Microsoft Windows 10/11 compatible
|
Platform |
INTEL® Socket 1151 |
|
Model Name |
AFMIH110D3-1L-V2 |
|
Chipset |
Intel® H110/ B150/ B250 |
|
CPU Supports |
Supports Intel® Socket 1151 for Core i7/ Core i5/ Core i3 Pentium/ Celeron Processors Supports Intel 8th/9th Generation |
|
FSB |
1333/ 1600MHz |
|
Memory |
Dual Channel So-Dimm DDR3L 1333/1600MHz 1.35V Memory up to 16GB |
|
Dimm |
2 x Memory Slots (Max. up to 32GB) |
|
Onboard Graphics |
Integrated Graphics Processor |
|
PCI/PCI-E Slots |
1 x Mini PCI-E Slot (Supports 4G/WIFI Module) |
|
SATA |
2 x SATA2 1 x M.2 (PCIe NVMe Gen3 x4 ) |
|
IDE |
N/A |
|
Audio |
Realtek 662 on board, Supports 6-channel audio-out |
|
LAN |
Realtek RTL8111 Gigabit LAN onboard |
|
Back Panel I/Os |
1 x HDMI 1 x D-Sub (VGA) Port 4 x USB 3.0 1 x LAN 2 x Audio |
|
ON-Board Pinheaders/Connectors |
2 x USB 2.0 pinheader (support additional 4 USB 2.0s) 2 x Front Panel 2 x COM pinheader 1 x VGA connector 1 x HDMI connector 1 x LVDS 1 x PWR DC 1 x ATX12V, 4P 1 x SPEAKER 1 x AUDIO |
|
BIOS |
UEFI BIOS |
|
Mounting |
4 mounting holes |
| Form Factor | Mini-ITX (17 x17cm) |
