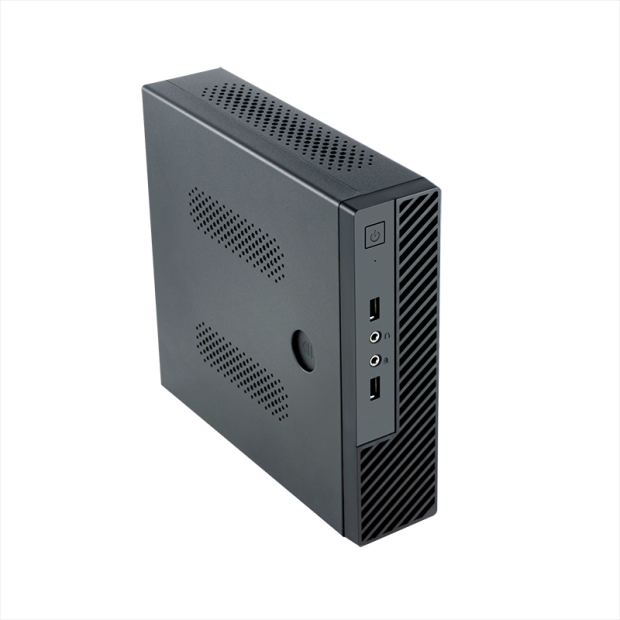

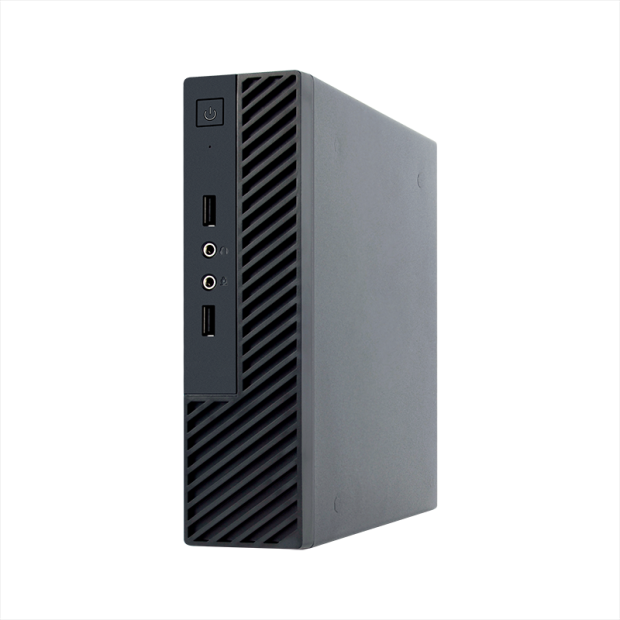

AFM02-1135G7D
Small size, high performance. Built-in Intel 11th core processor
High performance core display refreshing game full of combat power
All-copper thermal module Efficient heat dissipation
High speed silent fan+All copper heat sink. Mini PC keep cool even play game for long time.
Creative design Release inspiration
Easy to deal with on Graphic design, industrial design, machine design etc.
Rich interfaces meet the requirements of different scenarios.
Come with WIFI 5, data transmission is more stable and efficient.
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►Built-in Intel 11th core processor
►All-copper thermal module Efficient heat dissipation
►Creative design release inspiration
►Come with WIFI 5, data transmission is more stable and efficient
►Rich interfaces meet the requirements of different scenarios
|
Platform |
i5-1135G7 |
|
Model Name |
AFM02-1135G7D |
|
Chipset |
Intel® Core™ i5-1135G7 Processor 8M Cache, up to 4.20 GHz(TDP 28W) |
|
Storage |
1 x SATA 3.0 Supports 2.5" HDD/SSD (1 x 3 Gbps ) 5V/12V（4Pin，1*4Pin，2.54mm) |
| 1 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(NVME) Standard PCIE 3.0 hard disk interface, maximum transfer speed 32.0Gbps |
|
|
LAN |
2 x RJ45 Giga LAN RTL8111/8112 Gigabit Ethernet Controller 1000Mbps BaseT LAN |
|
Audio |
Integrated RealtekALC662HD digital audio decoder, 6-channel high-fidelity audio controller(out） |
|
OS |
Windows 10/11,Linux |
|
Onboard Graphics |
Intel® Iris® Xe Graphics |
| I/O (REAR) | 4 x HDMI 2.0 4096 x 2304@24Hz |
| 1 x COM 1920*1200@60HZ | |
| 2 x LAN Port with LED | |
| 2 x Audio(1 x MIC, 1 x SPK) | |
| 1x WIFI Port | |
| 2 x USB 3.0 4 x USB 2.0 | |
| 1 x DC Port | |
|
Structure |
Dissipation Fan |
| Housing aluminum alloy |
|
| Bracket VESA bracket (Optional) |
|
| Dimensions 205 x 190 x 45mm / (WxDxH) |
|
| Weight Net 1.49kg Gross 2.44kg |
|
|
Power Supply |
AC In |
|
DC In |
|
|
Temperature & Humidity |
Working Temp. |
|
Storage Temp. |
|
|
Working Humidity |
|
|
BIOS |
UEFI BIOS |
|
Accessories |
1 x Power adapter 12V/5A(5.5*2.5mm) |
|
1 x Power cable 1.2M |
|
|
1 x User Manual |
|
|
1 x HDMI cable (Optional) |
|
|
1 x Stand holder (Optional) |
|
|
1 x VESA mount (Optional) |
|
|
1 x WIFI (Optional) |
