AFOX ATX 3.0 1200W
Design Concept
The AFOX power supply adheres to the concept of "More Gaming Power, Always Fast with AFOX", adopts an all-black metal shell design, is simple and atmospheric, adapts to all kinds of mainframe boxes, and provides high-end visual experience.
Fully Modular Design
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
Quality Assurance
Quality is the top priority of AFOX design. AFOX power supply ensures that the power supply can continuously supply high-quality power, thereby enhancing the performance of the computer and prolonging its service life.
80 Plus Gold certified ensures to deliver 92% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
Compact Size Design
With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, AFOX has reduced the size of a 1200W power supply, so it can be easily installed in any chassis without space constraints.
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►80 PLUS Gold certified
►ATX 3.0 Support, power consumption output-200%
►Fully modular design
►High quality capacitors
►Compact size design
►Smart bearing fan
►Fan dust removal function
►Single +12V rail
►OVP/OPP/SCP/UVP/OCP/OTP protection
►PCIE GEN 5.0 native 12+4-pin 12VHPWR cable support
Type | Intel Form Factor ATX 12V ATX 3.0 |
PFC | Active PFC (>0.9 typical) |
Input Voltage | 100-240 Vac (full range) |
Input Current | 15-7.5A |
Input Frequency | 60-50 Hz |
Output Capacity | 1200W |
Dimension | 140*150*86mm |

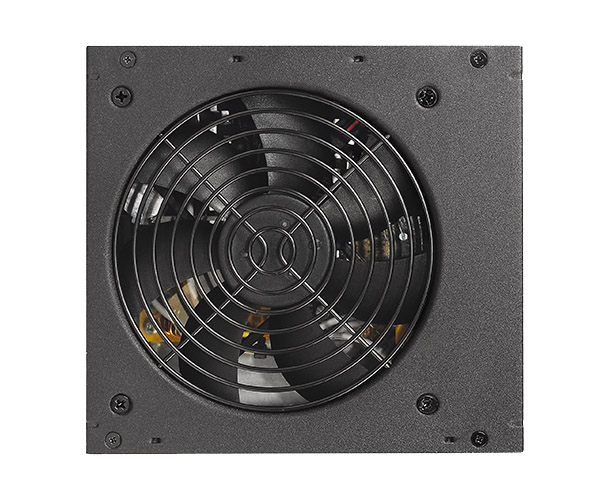

Fan Type | 140mm Double ball bearing Fan |
80 PLUS | Gold |
Efficiency | 92% at typical load |
MTBF | >100,000 hours |
Protection | OVP/OPP/SCP/UVP/OCP/OTP |
Power Good Signal | 100-150ms |
Hold Up Time | >16ms |
Cable Type | Flat, All black |
Connectors | 1. FLAT Type Cable 2. Output cable: outside length 20+4P, (Length:600mm) SATA+SATA+SATA+SATA, (Length:500+150+150+150mm) SATA+SATA+SATA+SATA, (Length:500+150+150+150mm) SATA+SATA+SATA+SATA, (Length:500+150+150+150mm) IDE+IDE+IDE+FDD, (Length:500+150+150+150mm) CPU:P8(4+4), (Length:700mm) CPU:P8(4+4), (Length:700mm) PCI-E:P(6+2), (Length:550mm) PCI-E:P(6+2, (Length:550mm) PCI-E:P(6+2)+P(6+2), (Length:550+150mm0) PCI-E5.0: 12VHPWR 12+4P, (Length:600mm) |
