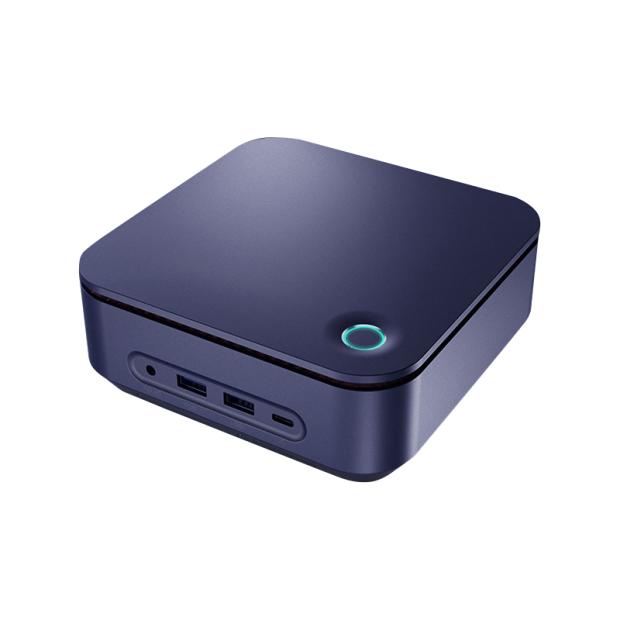

AF1135G7-CPC
Small size, high performance. Built-in Intel 11th latest core processor
High performance core display refreshing game full of combat power
It adopts Intel Ruiju XE integrated graphics card with a high performance graphics processor
All-copper thermal module Efficient heat dissipation
High speed silent fan+All copper heat sink. Mini PC keep cool even play game for long time.
Creative design Release inspiration
Easy to deal with on Graphic design, industrial design, machine design etc.
Rich interfaces meet the requirements of different scenarios.
Come with WIFI 6, Data transmission is more stable and efficient.
Support connectors 3 monitors at the same time, enjoy multi-screens.
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
| Platform | i5-1135G7 |
| Model Name | AF1135G7-CPC |
| CPU Supports | intel Core i5-1135G7 |
| RAM | 16GB DDR4 2666MHz (2*NBDDR4 MAX 64G 3200MHz) |
| SSD | M.2 SSD 256G (SATA3.0) |
| LAN | RTL8168/8111/8112 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN |
| Audio | Integrated RealtekALC662HD digital audio decoder, 6-channel high-fidelity audio controller |
| OS | Windows7/8/10,11,Linux |
| Back Panel I/O | HDMI *1 1920*1080@60HZ |
| DP *1 1920*1080@60HZ | |
| Type-C*1 1920*1080@60HZ | |
| Lan LAN X1 ,WIFI(Connect the internet via network cable or WIFI) | |
| USB 4x USB 3.0 | |
| Button 1*Privacy protection one-click unlock | |
| Storage | Audio Intel High Definition Audio Controller |
| 1 X M.2 SSD Standard SATA3.0 hard disk interface, maximum transfer speed 6.0Gbps(2280) | |
| Structure | Dissipation Fan |
| Housing plastic |
|
| Bracket NO |
|
| Dimensions 138*138*53.5 mm/ (WxDxH) |
|
| Weight Net 0.561kg,Gross1.4kg |
|
| Power | DC In 19V/3.7A, DC inner diameter is 2.5MM |
| Temperature & Humidity | Working Temp. -0°C ~ 70°C |
| Storage Temp. -20°C ~ 80°C (-20°F ~ 176°F) |
|
| Working Humidity 0% - 90% @40°C non-condensing |
|
| BIOS | UEFI BIOS |
| Accessories | 1 x Power adapter 19V/4.7A |
| 1 x Power cable 1.2M | |
| 1 x User Manual | |
| 1 x HDMI cable | |
| 1 x Stand holder |
