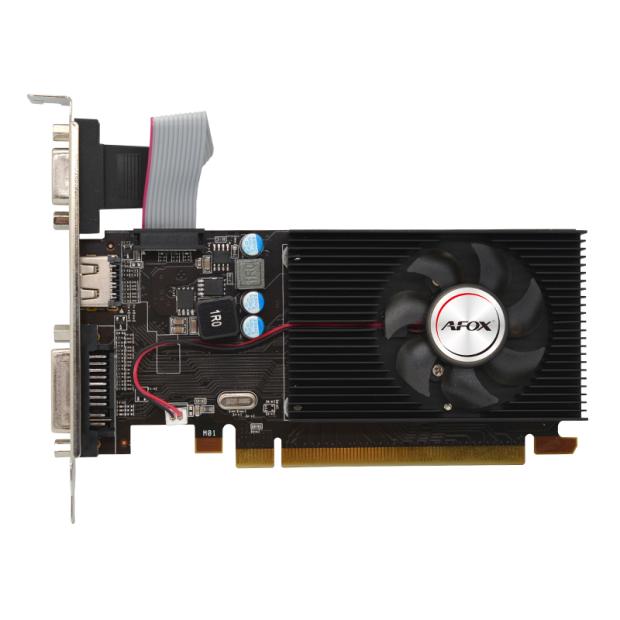

AFOX R5 230 (2GB)

R5 230 is a graphics card defined at the entry level, which focuses on high-definition audio and video, entertainment, paperwork, office and school, and can meet daily use and some ordinary games.

For notebooks with dual graphics cards, the biggest advantage of R5 230 is to switch the graphics cards by themselves according to different running programs, which can achieve the purpose of saving energy and maximizing performance at the same time.



  • DESCRIPTION
  • SPECIFICATION
  • BIOS / DRIVERS UPDATE
  • REQUIREMENT

►Powered by ATI Radeon™ R5 230

►Microsoft® DirectX® 11 Support

PCI Express 2.0 support

►Microsoft® Windows® 10 Compatible

*Graphics Engine  ATI Radeon R5 230
*Bus Standard PCI Express 2.0
*Video Memory DDR3 2048MB
*Engine Clock 625 MHz
*Memory Clock 800 MHz
*RAMDAC 400MHz
*Memory Interface 64-Bit
*D-Sub Max Resolution 2048 x 1536
*DVI Max Resolution 2560 x 1600
*DVI Output Yes x 1
*HDMI Output  Yes x 1
*D-sub Output Yes x 1
*HDCP Support  Yes
*Related PN AFR5230-2048D3L5
AFR5230-1024D3L5


CLICK TO DOWNLOAD: DRIVERS UPDATE
